November 28, 2016

SDLG Backhoe loader B876

SDLG Backhoe loader B876 is a small multi-function engineering machine newly designed with high cost performance and is widely applied in various building construction engineering, such as road construction and caring, cable laying, electricity and airport engineering, municipal construction and quarrying work, in city and countryside. B876 is equiped with Italy Carraro transmission and drive axle.

Item	Specifications
Overall dimension
L×W×H	7246X2350X3650mm
Overall width(outside of rear wheel)	2240mm
Max.dumping height	2176mm
Dumping distance	819mm
Min.ground clearance	346mm
Max.digging depth	Standard boom 4327mm
Max.digging depth	Telescopic boom 5352mm
Max.digging radius	Standard boom 4327mm
Max.digging radius	Telescopic boom 6305mm
Wheel tread(front/rear)	1928/1790mm
Wheelbase	2170mm
Min.turning radius(outside of front wheel)	4178mm
Horizontal crossing radius(outside of bucket)	5426mm
Overall parameter
Overall working weight	8500-8800kg
Loding bucket capacity	1.0m³
Rate load	1800kg
Max.tractive force	≥82kN
Digging bucket capacity	0.18m³
Max.digging force	≥56kN
Max.breakout force	≥60kN
Max.gradeability	20
Engine
Model	WP4G95E221
Type	Inline,water-cooled,direct injection，Supercharged
Rated power/speed	70kW/2200r/min
Engine displacement	4.5L
Cylinder bore/stroke	105/130mm
Emission standard	II
Rated fuel consumption	≤230g/kW^.h
Max.torque	420N.m
Transmission system
Torque converter	Single-stage single-phase centripetal turbine
Transmission type	Synchronized shift
Gears	Four forward four reverse

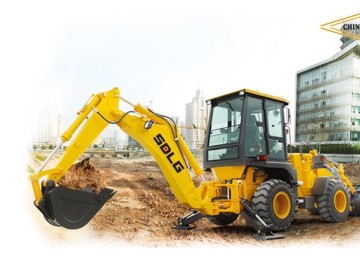

SDLG LGB680 Backhoe loader

Feature
Parameter

Feature

SDLG BACKHOE LOADER LGB680

1.Engine: yuchai YC4D80-T10 is featured by strong power, low noise, energy-conservation and environment-protection.

2.Transmission system: Double stick, hydraulic shift transmission is convenient and reliable. It is economical and high efficient.

3.Special mid breaststroke underlay is more stable and safe when crashing stone and deep digging.

4.Cabin: full-sealed cabin with front-rear rain scraper and cleaning system is roomy, bright. The luxury seat can be slid and turned around 360 degrees. It is convenient for operation. Optional choice of air-conditioner and radio system makes the working environment comfortable.

Optional pilot operation, operate smartly.

Parameter

Transmission system		Max digging radius	5670mm
Torque converter type	Single place, single, 3 elements	Loading equipment
Torque ratio	3.7	Type	Eight connecting pole
Transmission type	Flexed shaft power shift	Dumping height	2700mm
Gear shift	2 forward shift, 2 reverse shift	Dumping distance	860mm
Type	4-wheel drive	Brake system
Steering system		Service brake	Air over hydraulic disc brake on 4 wheels
Type	Articulated load hydraulic steering system	Parking brake	Manual internal expansion brake

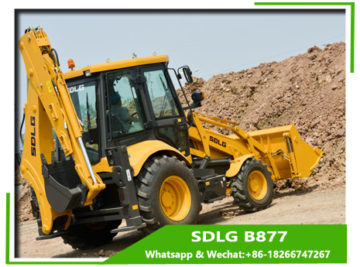

SDLG B877 Backhoe loader

SDLG B877 Backhoe loader, WZ30-25 Backhoe loader for sale

SDLG B877 Backhoe loader is with the Weichai WP4G95E221 engine of in-line arrangement, water cooling, four-stroke and direct injection, featuring a strong power above 100HP, large torque, low noise and reduced fuel consumption.

The fully-synchronous Italian 4-speed CARRARO transmission is perfectly with an appropriate hydraulic torque converter, enabling electric shift of forward gears and rear gears, agile reaction and easier uphill.

Item	Specifications
Operating weight	8500KG
Bucket capacity	1.0 m³
Digging bucket Capacity	0.2 m3
Rated load	3000Kg
Max.breakout force	60KN
Max.dumping height(E)	2720mm
Dumping distance(G)	1020~1050mm
Length×Width×Height	5865× 2270 × 2240
Max.tractive force	82KN
Max.climbing angle(H)	22°
Max digging depth	4329mm
Max digging radius	5343mm
Rated power	70kW
