SDLG G9220F Motor Grader

SDLG G9220F Motor Grader with New designed cab, is equipped with electronic controlled Deutz engine with variable power and three power curves, which matches with ZF transmission perfectly and can select corresponding power mode as per load, achieving optimum performance and fuel efficiency, energy saving and high efficiency.

The whole machine is with automatic cruise control function which enables the engine to run at any set speed, reducing the work intensity of operator.

High-pressure gear pump and import multiple-way valve, as well as dual-pump double circuit constant displacement hydraulic system are applied, and the overall working system pressure is 21 MPa, ensuring high working efficiency.

No-spin limited slip differential and heavy-duty roller chain drive balance box are provided to enhance the overall tractive force and the flatness of surface operated by the blade.

The G9290 grader has excellent traction and powerful blade down force and is designed with the operator’s needs in mind. Easy to operate and maintain, it’s a machine that’s built for hard work in the toughest conditions.

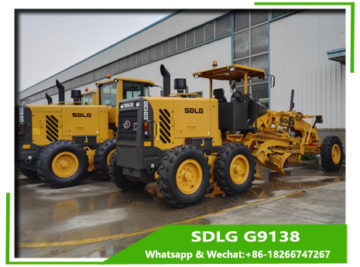

SDLG G9138 Motor Grader

SDLG G9138 Motor Grader, a high-speed, high-efficiency and high-precision multipurpose product developed for oversea markets based on the full research of oversea market demand and benchmarking product performance, is applied to ground leveling, ditching, slop scrapping, bulldozing, snow plowing, loosening, compaction, material placing, mixing and other work, and widely used in construction of highways, airports and national defense projects, mines, roads and water conservancy facilities and farmland improvement.

1.The international famous-brand engine matches with the fixed-axis transmission perfectly, thus achieving optimum performance and fuel efficiency, energy saving and high efficiency.

2.The No-spin limited slip differential of the rear axle effectively improves the power performance and ensures high trafficability. The swing range of balance transmission is ±15°,ensuring the rear wheel landing at the same time, enlarging the traction and providing high operation levelness.

3.The fixed-displacement hydraulic system uses high pressure gear pump and imported multi-valve. The whole machine working system pressure is 18MPa, and the working efficiency is high.

4.Cab is optional

SDLG G9220 Motor Grader

SDLG G9220 Motor Grader is equipped with electronic controlled Deutz engine with variable power and three power curves, which matches with ZF transmission perfectly and can select corresponding power mode as per load, achieving optimum performance and fuel efficiency, energy saving and high efficiency.

The whole machine is with automatic cruise control function which enables the engine to run at any set speed, reducing the work intensity of operator.

High-pressure gear pump and import multiple-way valve, as well as dual-pump double circuit constant displacement hydraulic system are applied, and the overall working system pressure is 21 MPa, ensuring high working efficiency.

No-spin limited slip differential and heavy-duty roller chain drive balance box are provided to enhance the overall tractive force and the flatness of surface operated by the blade.

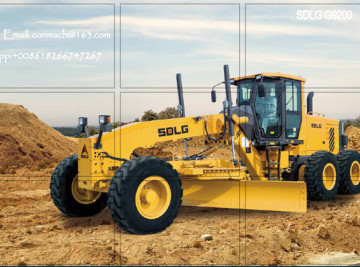

SDLG G9200 Motor Grader

1.SDLG G9200 Motor Grader is equipped with electronic controlled Deutz engine with variable power and three power curves, which matches with ZF transmission perfectly and can select corresponding power mode as per load, achieving optimum performance and fuel efficiency, energy saving and high efficiency.

2. The whole machine is designed with automatic cruise control function which enables the engine to run at any set speed, reducing the work intensity of operator.

3. High-pressure gear pump and import multiple-way valve, as well as dual-pump double circuit constant displacement hydraulic system are applied, and the overall working system pressure is 21 MPa, ensuring high working efficiency.

4. No-spin limited slip differential and heavy-duty roller chain drive balance box are provided to enhance the overall tractive force and the flatness of surface operated by the blade.

5. Pallet type working device driven by double cylinder plus rotating valve is applied by absorbing VOLVO technology, which ensures high driving force and reliability; the blade can rotate under a load and features high working precision, being a leader in the domestic industry.

6. Frame structure welded by box beam is of integrated modularized design; the rear agitator and other accessories can be accessed conveniently for removal and installation, and are independent of the transmission system such that the impact load will only be transfered to the rear frame, ensuring high reliability.

7. The swing frame utilizes lubrication-free and maintenance-free composite bearing featuring small friction coefficient, high impact and wear resistance and strong reliability.

8. The working device applies 7-hole linkage mechanism and electro-hydraulic cylinder locking mechanism, ensuring safe and convenient operation.

9. The cab is equipped with FOPS/ROPS system, and has good sealing performance and high safety and reliability; the front field of vision is clear that front wheels and blade can be seen, facilitating operation and enhancing working precision.

SDLG G9190 Motor Grader

SDLG G9190 Motor Grader is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the basis of advanced technology of VOLVO, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely applied in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland improvement and so on.
1. Electrically-controlled variable power DEUTZ engine and has three power curves in perfect matching with Advance transmission case, which makes it available to select applicable power mode based on load to realize an optimum performance and fuel efficiency and high efficiency and energy saving function.

2. Equipped with dual-cylinder driven tray-type working device of advanced VOLVO technology and domestic industrial originated dual rotatory cylinder and rotatory valve structure which is of large drive power and can rotate with load.

3. FOPS/ROPS cab is safe and reliable and of good sealing performance; It has wide visual field and is conductive to observe the condition of two ends of shovel nose tool in turning, crabbing and leveling rim angle, with high operational accuracy.

SDLG G9180 Motor Grader

SDLG G9180 motor grader as a product of high speed, high efficiency, high accuracy and multiple purposes, G9180 is developed by SDLG on the basis of absorbing advanced technology of European, can be used for ground leveling and grooving,scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely applied in construction operating condition of road, airport, defense engineering, mine construction, road construction, water conservancy construction and farmland improvement and so on.

The perfect combination of Weichai engine and Advance 6WG180 gearbox helps realize best capability and fuel efficiency. This product adopts high pressure gear pump and imported multiway valve and double pump and two circuit hydraulic system, and the system pressure of whole machine can reach 21Mpa (Competitors are only 18Mpa), thus improving the operating efficiency.

Applied with European advanced  technology and equipped with the dual cylinder-driven pallet-type working device,helping to realize large driving force and high reliability. The blade can rotate with load and provide precise operation which is domestic industrial originated.

Swing frame is made of lubrication-free and maintenance-free composite bearing, with small frictional coefficient, high reliability and is shock-proof and water-proof; Hydraulic lock cylinder location is adopted and is easy to operate.

SDLG G9165 Motor Grader

G9165 is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the basis of advanced technology of European, used for ground leveling and grooving, scraping slope,bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely applied in construction operating condition of road, airport, defence engineering, mine construction, road construction,water conservancy construction and farmland improvement and so on.

1.Adopted WP6G175E21 of Weichai engine which match perfectly with YD13 of Hangchi transmission thus to realize optimum capability and fuel efficiency.

2.Swing frame with lubrication-free and maintenance-free composite bearing, with small frictional coefficient, high reliability and is shock-proof and water-proof; Hydraulic lock cylinder location is adopted and is easy to operate.

3.Fully sealed and optimized Cab by ergonomics. It is spacious and bright, and good sealing effect. Wide visual field, operators can see the front wheel and the blade clearly thus to improve the operating precision.
